Find & Match Memory Game with Integrated Hinge & Latch Box
Put your memory and laser cutter to the test with this precision-engineered Find & Match Game Set. Designed as a compact travel game or educational toy, this digital template includes everything you need to create a protective storage case and a set of 12 uniform game tiles.

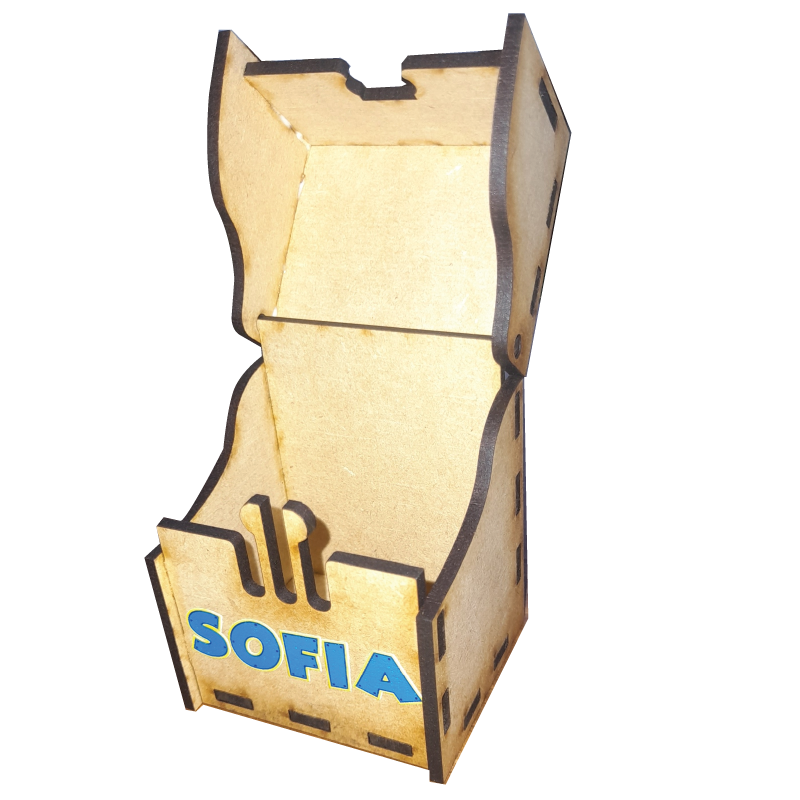

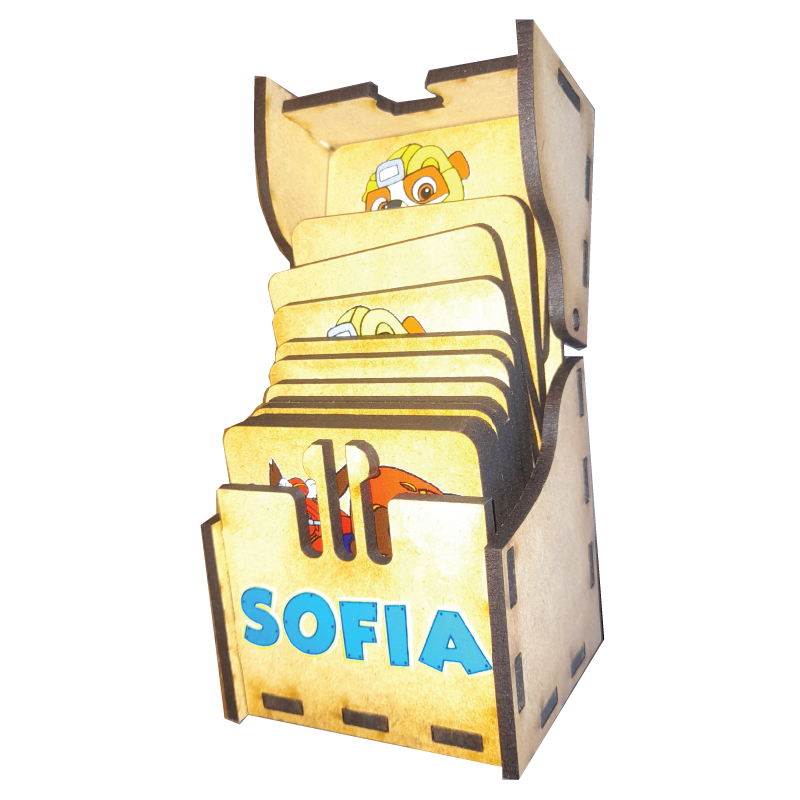

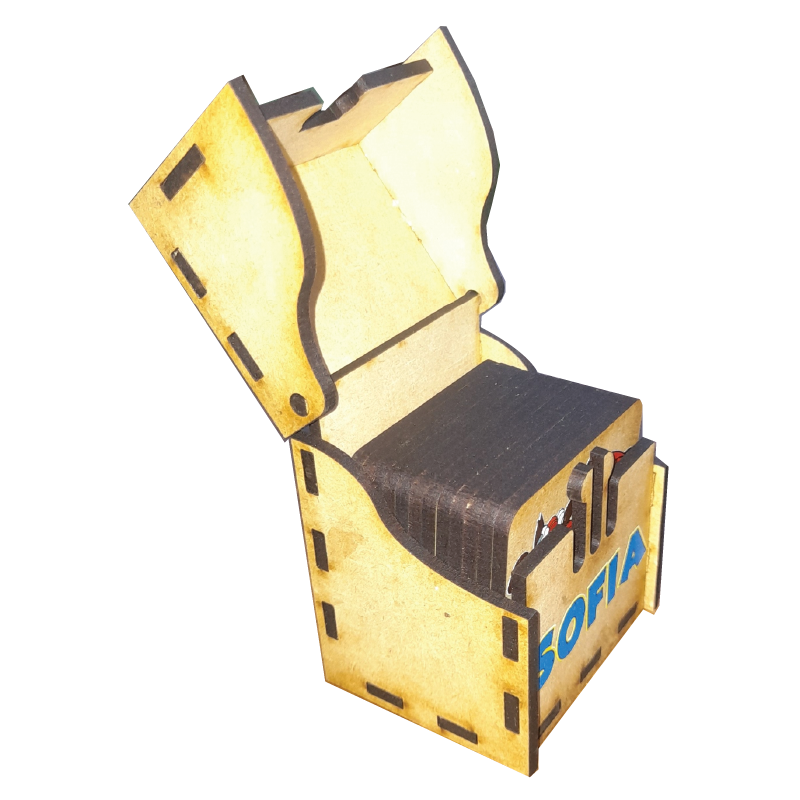

The storage box features an advanced integrated wooden hinge and interlocking latch system built directly into the design. No screws, metal hardware, or external components are required. The 12 square tiles are perfectly sized to be either custom engraved with your own designs or UV printed.
Like all files in our lab, this project has been physically cut, assembled, and fully tested to guarantee smooth mechanical movement and a perfect friction-fit layout.
Dimensions
Storage Box: 78 x 66 x 51 mm (~3 1/16" x 2 5/8" x 2")

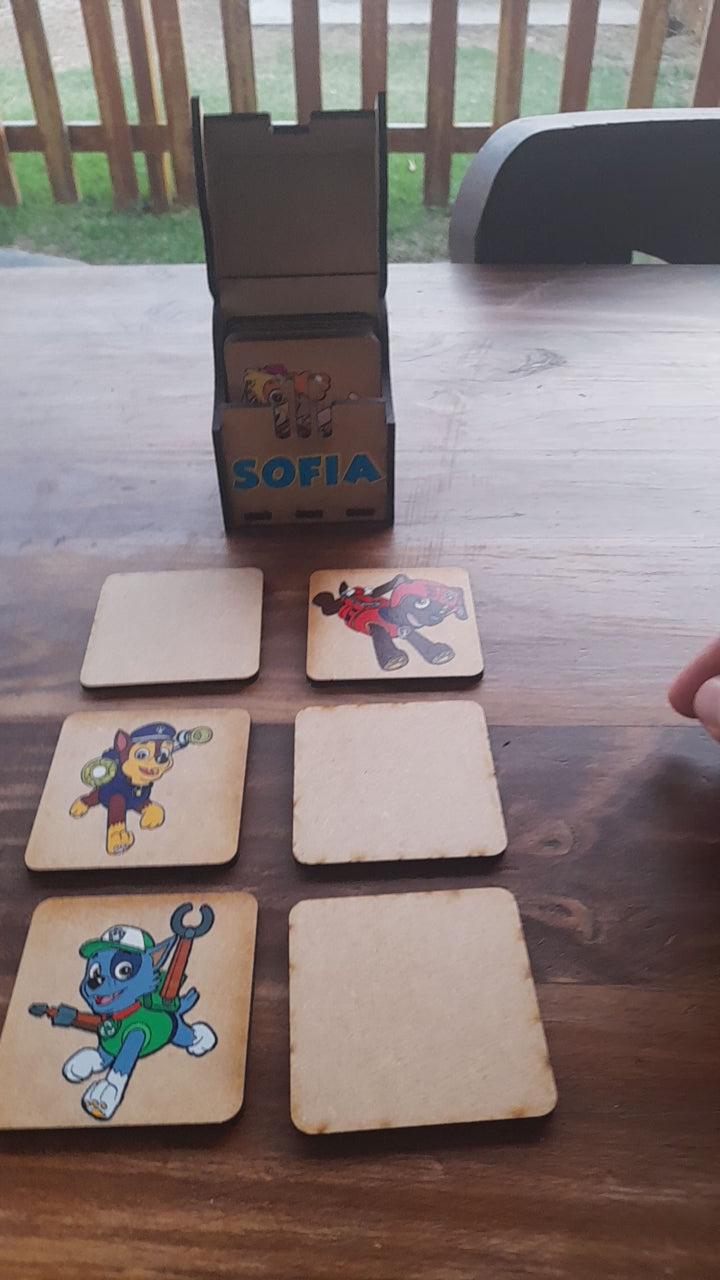

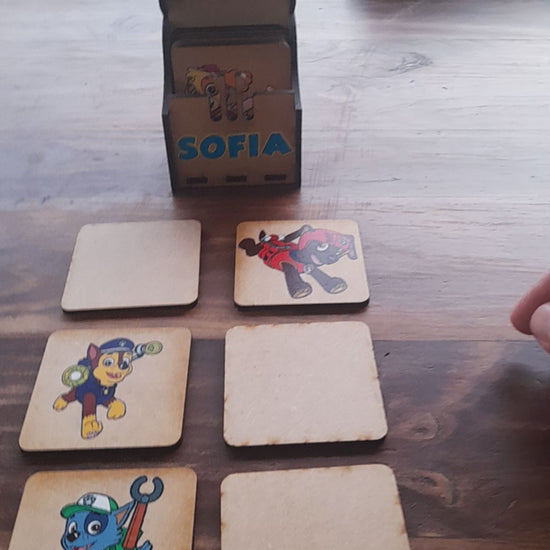

Game Tiles (x12): 58 x 58 mm (~2 5/16" x 2 5/16")
Product Features
Hardware-Free Engineering: Features built-in, functional living hinges and a secure physical latch mechanism made entirely from your sheet material.Dual Production Styles: The 12 included game pieces are blank grids, optimized for either detailed laser engraving or direct UV printing.

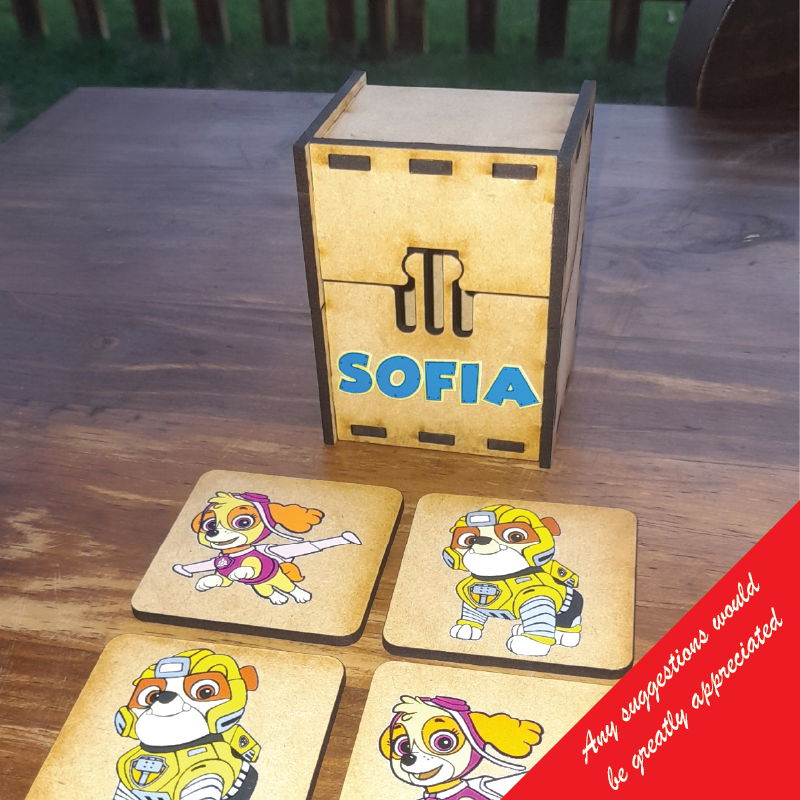

Tested & Proven: This design has been prototyped and verified in-house. The photos represent the actual, physical final product.
Compact & Portable: An excellent choice for children's educational games, pocket travel sets, or a high-margin product to add to your commercial catalog.
Technical Specifications
Material Thickness: Specifically optimized for 1/8" (3mm) MDF, Plywood, or Acrylic.
File Formats Included: SVG, PDF, EPS, AI
Assembly Type: Interlocking tabbed finger joints.
Important Information
Digital Download Only: This listing is for the digital vector files. No physical item will be shipped.
Commercial Use: You are fully permitted to sell the physical games you manufacture using these templates.
No Resale of Files: Distribution, sharing, or resale of these digital assets is strictly prohibited.
